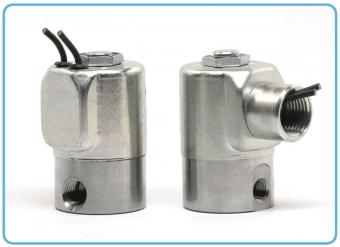

Peter Paul Series 20 Model 23 (exhaust to atmosphere) Valve

3-WAY NORMALLY CLOSED (e to a)

A complete line of valves with a great selection of options and exceptional proven performance. The standard in the field. Air, water, and other fluids compatible with standard Buna seals. Hot water, steam, gasoline, and many oils require special seal materials.

The flagship valve initially created for fluid power industry.
Heavy duty and made of stainless steel.
A real workhorse with proven performance.
It has the greatest amount of options available of all the valves.
Wide range of orifice sizes from 1/32" to 1/4".

Tabs

Specifications

+ MAX. OPER. PRESS. DIFF.				ORIFICE SIZE		CV FACTOR		VALVE NUMBER GROMMET HOUSING		CONDUIT HOUSING

AC		DC		INLET	EXH	INLET	EXH	1/8 NPT PORTS	1/4 NPT PORTS	1/8 NPT PORTS	1/4 NPT PORTS

400		400		1/32	1/32	.024	.024	23GG7DGM	23GG9DGM	23GG7DCM	23GG9DCM
150	(200)	150	(200)	3/64	1/16	.052	.095	23HJ7DGM	23HJ9DGM	23HJ7DCM	23HJ9DCM
100	(135)	100	(135)	1/16	1/16	.095	.095	23JJ7DGM	23JJ9DGM	23JJ7DCM	23JJ9DCM
100	(135)	100	(135)	1/16	3/32	.095	.156	23JK7DGM	23JK9DGM	23JK7DCM	23JK9DCM
75	(100)	75	(100)	3/32	3/32	.156	.156	23KK7DGM	23KK9DGM	23KK7DCM	23KK9DCM
50	(70)	50	(70)	1/8	3/32	.284	.156	23NK7DGM	23NK9DGM	23NK7DCM	23NK9DCM
35	(40)	35	(40)	1/8	1/8	.284	.201	23NN7DGM^	23NN9DGM^	23NN7DCM^	23NN9DCM^
20		20		3/16	3/32	.500	.156	23PK7DGM	23PK9DGM	23PK7DCM	23PK9DCM
20		20		3/16	1/8	.500	.201	23PN7DGM^	23PN9DGM^	23PN7DCM^	23PN9DCM^
15		—		1/4	3/32	.700	.156	23RK7DGM	23RK9DGM	23RK7DCM	23RK9DCM
15		—		1/4	1/8	.700	.201	23RN7DGM^	23RN9DGM^	23RN7DCM^	23RN9DCM^

^ VALVES WITH 1/8 N.O. ORIFICE ARE UL LISTED ONLY

Ordering Information:

When ordering valves or repair packs add voltage and frequency to completevalve number. examples: valve (23JJ7D3LM-12/DC) repair pack (K23JJDL-DC)

When ordering operators add the letter “O” to the front of the valve number, replace body port number with the letter “D”: example: operator (O23JKDDGM 120/60)

Operating Conditions:

Media:

Air, water, and other fluids compatible with standard Buna seals. Hot water, steam, gasoline, and many oils require special seal materials. (Series 20 pressure ratings may change due to the viscosity of the liquid.)*

Valve Temperature Range:

Standard Valves – 0°F (-18°C) to 104°F (40°C) ambient; 0°F (-18°C) to 150°F (65°C) media. Optional Valves – can tolerate much higher or much lower ambient and media temperatures.

Maximum Operating Pressure Differentials:

See table above.

Burst Pressure:

5000 PSI

Leakage:

Bubble tight for standard valves.

Vacuum:

To 5 Microns*

Electrical Characteristics:

Coil Voltage:

12/DC, 24/DC, 48/DC, 125/DC, 120/60-110/50, 240/60, and 24/60.

Nominal Power:

AC — 8.7 Watts DC — 9.5 Watts

Coil Construction:

Molded (Std.), Non-molded Class A and Potted Class F or Class H (Opt.)

Operating Speed:

Up to 600 CPM

Duty Cycle:

Continuous

Mechanical Characteristics :

Body:

Stainless Steel (Std.) or Brass (Opt.)

Internal Components:

Stainless Steel. Copper – AC Only.

Elastomers:

Nitrile (Buna) (Std.). Many other elastomers available.*

Orifice Diameter:

See table above.

Porting:

Standard 1/8" and 1/4" NPT (other ports available).

Housing:

Grommet and 1/2" NPT conduit - many options available.*

Listings:

Most valves are UL and CSA listed.*

Life Expectancy:

Millions of cycles, depending on application, lubrication, etc.

Valve Weight:

Grommet Valve: 1.06 lb Conduit Valve: 1.13 lb

Repair Packs:

See table above.

Options:

Alternate Port Locations, Metering, Manual Override, Alternate Elastomers, Spade Terminal Coil, European Style DIN, Explosion Proof and Magnetic Latching Coil

Drawings

To view files Autodesk Viewer can be found here. https://viewer.autodesk.com/
