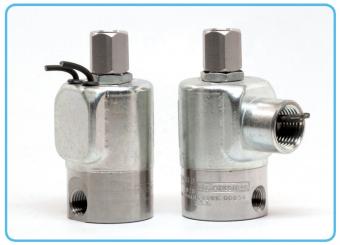

2-WAY NORMALLY OPEN

A complete line of valves with a great selection of options and exceptional proven performance. The standard in the field. Air, water, and other fluids compatible with standard Buna seals. Hot water, steam, gasoline, and many oils require special seal materials.

The flagship valve initially created for fluid power industry.
Heavy duty and made of stainless steel.
A real workhorse with proven performance.
It has the greatest amount of options available of all the valves.
Wide range of orifice sizes from 1/32" to 1/8".

Tabs

Specifications

+ MAX. OPER.
PRESS. DIFF.

ORIFICE SIZE

CV FACTOR

VALVE NUMBER
GROMMET HOUSING

CONDUIT HOUSING

1/8 NPT PORTS

1/4 NPT PORTS

1/8 NPT PORTS

1/4 NPT PORTS

400

(700)*

400

(700)*

1/32

.024

21G7XGM

21G9ZGM

21G7XCM

21G9ZCM

235

(500)

235

(500)

3/64

.053

21H7XGM

21H9ZGM

21H7XCM

21H9ZCM

150

(350)

150

(350)

1/16

.095

21J7XGM

21J9ZGM

21J7XCM

21J9ZCM

100

(150)

100

(150)

3/32

.156

21K7XGM

21K9ZGM

21K7XCM

21K9ZCM

(40)

1/8

.201

21N7XGM ^

21N9ZGM ^

21N7XCM ^

21N9ZCM ^

^ VALVES WITH 1/8 N.O. ORIFICE ARE UL LISTED ONLY
* FKM seals not recommended for pressure ratings above 500 PSI.
+ Ratings in brackets are optional extended ratings; consult factory

Ordering Information:

When ordering valves or repair packs add voltage and frequency to complete valve number. for examples: valve (21J9ZGM 120/60) repair pack (K21JDX AC)

When ordering operators add the letter “O” to the front of the valve number, replace body port number with the letter “D”: example: operator (O21JDDGM 120/60)

Operating Conditions:

Media:

Air, water, and other fluids compatible with standard Buna seals. Hot water, steam, gasoline, and many oils require special seal materials. (Series 20 pressure ratings may change due to the viscosity of the liquid.)*

Valve Temperature Range:

Standard Valves – 0°F (-18°C) to 104°F (40°C) ambient; 0°F (-18°C) to 150°F (65°C) media. Optional Valves – can tolerate much higher or much lower ambient and media temperatures.

Maximum Operating Pressure Differentials:

See table above.

Burst Pressure:

5000 PSI

Leakage:

Bubble tight for standard valves.

Vacuum:

To 5 Microns*

Electrical Characteristics:

Coil Voltage:

12/DC, 24/DC, 48/DC, 125/DC, 120/60-110/50, 240/60, and 24/60.

Nominal Power:

AC — 8.7 Watts DC — 9.5 Watts

Coil Construction:

Molded (Std.), Non-molded Class A and Potted Class F or Class H (Opt.)

Typical Response Time on Air:

4 - 16 Milliseconds

Operating Speed:

Up to 600 CPM

Duty Cycle:

Continuous

Mechanical Characteristics :

Body:

Stainless Steel (Std.) or Brass (Opt.)

Internal Components:

Stainless Steel. Copper – AC Only.

Elastomers:

Nitrile (Buna) (Std.). Many other elastomers available.*

Orifice Diameter:

See table above.

Porting:

Standard 1/8" and 1/4" NPT (other ports available)*

Housing:

Grommet and 1/2" NPT conduit - many options available.*

Listings:

Most valves are UL and CSA listed.*

Life Expectancy:

Millions of cycles, depending on application, lubrication, etc.

Valve Weight:

Grommet Valve: 1.13 lb Conduit Valve: 1.19 lb

Repair Packs:

See table above.

Options:

Alternate Port Locations, Metering, Manual Override, Alternate Elastomers, Spade Terminal Coil, European Style DIN, Explosion Proof and Magnetic Latching Coil
